Solid State Drives Hi-Speed 2.5 Flash Disk SATA 4000


The SATA Solid State Disk is the next generation of storage device based on industrial flash memory technology, which emulates an ordinary magnetic hard disk.

Built for speed, these Solid State Storage Devices need no moving or spinning parts, and that makes no mechanical noise, suitable for used in portable or embedded system, which has only limited power consumption. The Flash Disk Drive products are also free from extra and special algorithm or some firmware driver. Just plug the unit into the SATA slots and operate it as same as a regular Hard Disk Drives.

These high-speed SSD units provide faster and higher performance storage solution for industrial application, embedded computing, high-speed networking, broadband communications, mobile computing, military, medical and aerospace

In Addition of high-performance, the devices are capable of withstanding a higher dree of enivornmental distress, delivering extreme endurance.
Model variation
Industrial Temperature -10 +70
Wide Temp -40 +85
Solid State Drives Hi-Speed  2.5  Flash Disk SATA 4000


Industrial SLC

Commercial Temperature Operating Range: 0c to +70c

Why buy this Industrial SATA Solid State Flash Disk from MemoryDepot.com?
Extremly reliable Flash SLC memory for your industrial application Exclusive iSmart monitoring system check health of the unit.
Worldwide & Direct Access to Support & Engineering
Dedicated Sales Representative
Buy samples onlines and get competitive volume pricing
Product listing
  Capacity   Part#   Description   Online Order   Sample pricing
1 to 9
  Quantity pricing
10+
D2S1-128D41C1S  128MB Single channel 2.5" SATA 4000 Solid State Flash Disk $46.00 USD Contact us
D2S1-512D41C1S  512MB Single channel 2.5" SATA 4000 Solid State Flash Disk $53.17 USD Contact us
D2S1-01GD41C1S  1GB Single channel 2.5" SATA 4000 Solid State Flash Disk $70.50 USD Contact us
D2S1-02GD41C1D  2GB Dual channel 2.5" SATA 4000 Solid State Flash Disk $76.29 USD Contact us
D2S1-02GD41C1S  2GB Single channel 2.5" SATA 4000 Solid State Flash Disk $86.50 USD Contact us
D2S1-04GD41C1S  4GB Single channel 2.5" SATA 4000 Solid State Flash Disk $144.50 USD Contact us
D2S1-04GD41C1D  4GB Dual channel 2.5" SATA 4000 Solid State Flash Disk $151.67 USD Contact us
D2S1-08GD41C1D  8GB Dual channel 2.5" SATA 4000 Solid State Flash Disk $205.00 USD Contact us






Specifications

InnoDisk FiD 2.5 SATA4000 products provide high capacity flash memory Solid State Drive (SSD) that electrically complies with Serial ATA (SATA) standard. InnoDisk FiD 2.5 SATA4000 support SATA I standard (1.5Hz) with high performance. Sustain read is 37MB(Max) per second, and sustain write is 34MB(Max) per second. InnoDisk FiD 2.5 SATA4000 uses standard 2.5-inch form factor, which can be used in laptop. InnoDisk FiD 2.5 SATA4000 is also designed for industrial field.

The SSD have good performance, and have small latency time. It effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD). InnoDisk FiD 2.5 SATA4000 can work in harsh environment. The SSD is vibration resistance, and can work in lower or higher temperature than HDD. InnoDisk FiD 2.5 SATA4000 complies with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.

General Specifications

Burst Transfer Rate : 1.5GB/sec
Sustained Read :
  • Duel Channel: 37MB/sec
  • Single Channel: 20MB/sec
    Sustained Write :
  • Duel Channel:34MB/sec
  • Single Channel: 20MB/sec
    Average Latency : 0.4 ms
    DC Input Voltage: +3.3V/+5V Single power supply

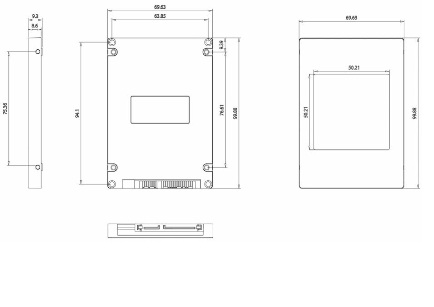

    Dimension: 99.88/69.63/9.3 mm (W/T/H)
    Compatibility: CE  and FCC standards
  •
    Boot

    No additional device drivers are required. Flash in Disk (FiD) 2.5 SATA4000 can be configured as a boot device.


    Wear Leveling

    Flash memory can be erased within a limited number of times. This number is called the erase cycle limit or write endurance limit and is defined by the flash array vendor. The erase cycle limit applies to each individual erase block in the flash device. InnoDisk FiD 2.5 SATA4000 uses a wear-leveling algorithm to ensure that consecutive writes of a specific sector are not written physically to the same page/block in the flash. This spreads flash media usage evenly across all pages, thereby extending flash lifetime.


    Environmental Specifications

    Operating Temperature Range
    Standard Grade: -100C ~ +700C
    Industrial Grade: -400C ~ +850C
    Storage Temperature Range
    Standard Grade: -550C to +950C
    Industrial Grade: -550C to +950C
    Reliabily and Durability
    Reliability Test Conditions
    Vibration: 7 Hz to 700Hz, 2 g, 3 axes
    Mechanical Shock Duration: 0.5ms, 1500 g, 3 axes
    Drop Unit: From a height of 1.5 m
    Product Condition MTBF (Hours): FiD 2.5 ATA6000 Telcordia SR-332 GB, 25 0CC > 3,000,000


    Manual CHS Value
    Capacity Cylinders Heads Sectors LBA
    128MB 249 16 63 250992
    256MB 499 16 63 502992
    512MB 999 16 63 1006992
    1GB 1999 16 63 2014992
    2GB 3965 16 63 3996720
    4GB 7931 16 63 7994448
    8GB 15863 16 63 15989904



    SATA DOM Vertical Disk on Module
