Disk on Module Innolite IDE 40Pin Vertical Wide Temp


Budget friendly flash storage for semi-industrial applications, e.g. kiosk These InnoLite series is absolutely different from those SSDs for consumer market. This product line is Reliable, industrial-thinking, and passed serial comprehensive reliability tests.

InnoLite series stands out from consumer grade SSDs due to our reliability and industrial design. Our InnoLite MLC series passed all comprehensive reliability tests to ensure the highest quality for our customers. Not only are our innoLite Series products customized to fit specific needs, they are backed by our dedicated R&D support team and 2 years warranty as well

InnoLite EDC supports advanced PIO (0-4), Multi Word DMA (0-2), Ultra DMA (0-4) transfer modes, multi-sector transfers, and LBA addressing
Disk on Module Innolite IDE 40Pin Vertical Wide Temp


Commercial MLC

Wide Temperature Operating Range -20c to +85c

Why buy this from MemoryDepot.com?
Best Reliability & Cost ratio using the improved MLC technology
Worldwide & Direct Access to Support & Engineering
Dedicated Sales Representative
Buy samples onlines and get competitive volume pricing
Product listing
  Capacity   Part#   Description   Online Order   Sample pricing
1 to 9
  Quantity pricing
10+
DE0H-04GD51AW1SN  4GB InnoLite EDC 40pin Wide temp $22.67 USD Contact us
DE0H-08GD51AW1DN  8GB InnoLite EDC 40pin Wide temp $32.00 USD Contact us
DE0H-16GD51AW1DN  16GB InnoLite EDC 40pin Wide temp $49.33 USD Contact us
DE0H-32GD51AW1DN  32GB InnoLite EDC 40pin Wide temp $142.67 USD Contact us






Specifications



Fully compatible with the IDE standard interface, ATA Standard
  • Access modes: True IDE Mode
  • ECC (Error Correction Code) function: 24 bits/ per 1024 bytes
  • +5V single power supply operation
  • Support Auto Stand-by and Sleep Mode.
  • Power Consumption: 140 mA (MAX)
  • Support transfer modes: PIO(0-4), Multiword DMA (0-2) and Ultra DMA(0-4)
  • MTBF 3,000,000 hours
  • R/W performance (dual):
  • Read: 40Mbytes/s. (MAX)
  • Write: 15Mbytes/s (MAX)
    Operating temperature range: 0C ~ +70C
    Product Informations

    Model Name: InnoLite EDC
    Interface: SATA II 3.0Gb/s
    Type: Vertical
    Flash Type: MLC
    Connector: 40/44 pin
    Capacity: 4GB~32GB
    Max. Channels: 2
    Sequential R/W (MB/sec, max.): 40/15
    Max. Power consumption: 0.75W(5V x 150mA)/0.5W(3.3V x 150mA)
    H/W Write Protect: Yes
    ATA Security: Yes
    S.M.A.R.T.: Yes

    Reliabily and Durability

    Vibration: 20G@7~2000Hz
    Shock: 1500G@0.5ms
    MTBF: 3 million hours

    Environmental Specifications

    Storage Temperature: -550C ~ +950C
    Operation Temperature:Standard Grade: 00C ~ +700C
    Industrial Grade. OP: -200C ~ +850C

    Physical Characteristics

    Dimension (WxLxH/mm): 40 pin: 60.2 x 27.3 x 6.4
    44 pin: 50.3 x 27.3 x 5.8

    Type: Vertical

    Wear Leveling function

    Flash memory can be erased a limited number of times. This number is call the erase cycle limit or write endurance limit and is defined by the flash array vendor. The erase cycle limit applies to each individual block in the flash device.

    The innolite EDC uses a wear leveling algorithm to ensure that consecutive writes of a specific sector are not written physically to the same page in the flash. This spreads flash media usage evenly accross all pages, thereby maximizing flash lifetime.

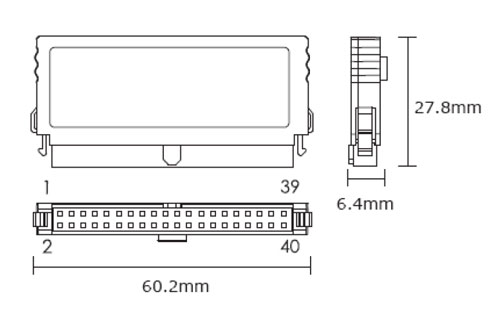

    Mechanical Specs.
